25NM3/H PSA Oxygen Plant With Cylinder Filling Manifold System

Product Categories

Henan Junfang Machinery Equipment Co., Ltd

Contact Now

Name: 25NM3H PSA Oxygen Plant With Cylinder Filling Manifold System
Brand: JUNFANG
Price: 1 USD

Brand Name : JUNFANG

Certification : CE/ISO

Place of Origin : Henan, China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/month

Delivery Time : 7-20 work days

Name : Modular Oxygen generator

Advantage : Easy Operation

Pressure : 0.1~1.0Mpa (adjustable)

MOQ : 1 Set

After-sales Service Provided : Video Technical Support Online Support

Color : White/Customized Color

Contact Now

25NM3/H PSA Oxygen Generator Oxygen Plant With Cylinder Filling Manifold System

Technical parameters of oxygen generator
Product number	Gas production m³/h	Oxygen concentration /%	Oxygen pressure /Mpa	Power 220V Power/Kw	Host weight/kg	Dimensions/mm	Air loss factor	Number of bottles per day 40L/120-150kg
3	3	93±3	0.4±0.1	0.2	600	15009001500	13.5	12-15
5	5	93±3	0.4±0.1	0.2	900	16009001500	13.5	20-24
10	10	93±3	0.4±0.1	0.2	1200	16009001900	13.5	40-48
20	20	93±3	0.4±0.1	0.2	1500	190010002180	13.5	80-96
30	30	93±3	0.4±0.1	0.2	2000	200011002180	13.5	120-154
40	40	93±3	0.4±0.1	0.2	2500	260012002300	13.5	160-192

The Structure is simple for PSA Oxygen Generator with advanced technology. It is more reliable, safer and automatic compared with

Cryogenic technology to liquid oxygen and high-pressure bottled oxygen.

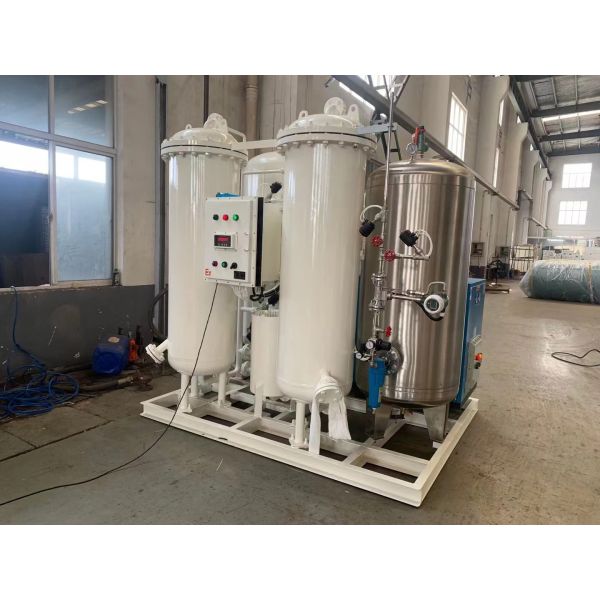

Oxygen Equipment designed by HENGDA, mainly composed of the following components:

1.Air compressor

2.Compressed air purification components ( Filters and Air Dryer)

3.Air buffer tank

4.PSA O2&N2 separation system

5.O2 Storage Tank

25NM3/H PSA Oxygen Plant With Cylinder Filling Manifold System
